A VFD retrofit on a blown film line does not create savings by simply “adding a variable frequency drive.” The savings come from three specific sources: eliminating throttling losses on the extruder motor, replacing DC drives with modern AC drives that hold efficiency across the speed range, and improving power factor to reduce reactive power charges. Which of these sources matters most depends on your existing drive type, motor condition, and operating profile. This article breaks down each savings source, explains the conditions that determine whether a retrofit makes financial sense, and provides a pre-retrofit checklist for plant engineers and production managers.



Why VFD Retrofits on Blown Film Lines Are Not All the Same



A common assumption is that any VFD will deliver 15–20% energy savings. That number appears in vendor materials and product pages, and it is not wrong — but it is also not universal. The actual savings depend on what the VFD is replacing.

There are three distinct retrofit scenarios on blown film lines:



Scenario 1: Replacing a DC drive with an AC drive. Older blown film extruders often used DC motors with DC drives. DC motors have brushes and commutators that wear over time, and their efficiency degrades as they age. Replacing a DC motor and drive with an AC motor controlled by a VFD is the most common retrofit and typically produces the most consistent savings. One documented case on a 25-year-old blown film extruder showed 30% energy savings after converting from DC to AC.



Scenario 2: Adding a VFD to a fixed-speed AC motor. If the extruder currently runs a fixed-speed AC motor with mechanical speed adjustment (belt changes, gear changes, or throttling), adding a VFD allows the motor to run at the exact speed required rather than a fixed speed with losses. The savings here come from eliminating throttling losses and running the motor at its optimal efficiency point.



Scenario 3: Replacing an older VFD with a modern one. Early-generation VFDs (pre-2005 or so) used older switching technology and lacked sensorless vector control. Modern VFDs with sensorless vector control can maintain torque accuracy at lower speeds and reduce energy consumption by an additional 5–10% compared to older drives.



Where the Energy Actually Goes on a Blown Film Line

Before evaluating any retrofit, it helps to understand the energy consumption breakdown of a typical blown film line. Research on plastics extrusion energy use indicates that approximately 30% of the energy consumed in a plastics extrusion facility can be attributed to extruder motors. The rest goes to heating elements, air rings, blowers, haul-off motors, winders, and auxiliary equipment.



This matters because VFD retrofits only address the motor-driven portion of energy consumption. If your extruder motor accounts for 30% of total line energy and the VFD retrofit reduces that motor's consumption by 20%, the overall line energy reduction is approximately 6%, not 20%. That distinction is often lost in retrofit proposals.

Energy Consumer	Typical Share of Line Energy	VFD Retrofit Addresses?
Extruder main motor	~30% of total	Yes
Barrel heating	~25–35%	No (requires separate heater optimization)
Air ring blower	~5–10%	Often yes (variable speed blower control)
Haul-off / nip rollers	~5%	Sometimes (multi-motor coordination)
Winder	~3–5%	Sometimes
Auxiliary (chillers, compressors)	Variable	No

Note: Percentages are approximate ranges based on published extrusion energy studies and vary significantly by line configuration, material, and operating conditions.



The Three Real Savings Sources Explained



1. Eliminating Throttling Losses on the Extruder Motor

On many older lines, the extruder motor runs at full speed while a mechanical throttle valve or damper restricts output. The motor consumes nearly full power even at reduced output. A VFD eliminates this by controlling motor speed directly. When the line runs at 60% output, the motor draws approximately 60% power rather than 90–100%.

This is especially relevant during ramp-up, grade changes, and periods of reduced output. One industry source estimates that during these operating phases, a VFD can cut extruder motor consumption by up to 30%. During steady-state full-output operation, savings are lower — typically 5–10% — because the motor is already near its optimal operating point.

2. DC-to-AC Conversion Efficiency

DC motors lose efficiency over time as brushes wear and commutators develop surface irregularities. The efficiency loss is gradual and often goes unnoticed because production continues. A DC motor that was 90% efficient when new may be 78–82% efficient after 15 years of operation.

Modern AC motors with sensorless vector VFD control maintain efficiency across the speed range and do not have brushes to wear. This is why documented DC-to-AC conversion cases show higher savings than adding a VFD to an already-efficient AC motor. A study on DC-to-AC drive retrofit in plastic extrusion reported “significant electrical energy savings” and improved productivity compared to DC drive operation.

3. Power Factor Improvement

This is the savings source most often overlooked. Industrial electricity bills typically include a reactive power charge when the facility’s power factor falls below a threshold (often 0.90 or 0.95, depending on the utility). Older DC drives and fixed-speed AC motors often operate at power factors between 0.70 and 0.80.

A VFD with active front-end or a well-designed passive filter can improve power factor to 0.95 or higher. In one documented retrofit, power factor improved from 0.49 to 0.86 after VFD installation, reducing peak demand and eliminating power factor penalty charges. The energy savings from power factor correction alone do not reduce kWh consumption, but they can reduce the total electricity bill by 5–15% depending on the utility’s rate structure.



Payback Period: What Actually Drives the Numbers



Published payback periods for VFD retrofits on blown film lines range from 18 to 30 months, depending on local electricity tariffs and line utilization rate. But these figures are averages. The actual payback for a specific line depends on four variables:

Variable	Impact on Payback	What to Verify
Hours of operation	Higher hours = faster payback	Actual annual running hours, not rated capacity
Existing motor efficiency	Lower efficiency = higher savings	Motor age, type (DC vs AC), last efficiency test
Local electricity rate	Higher rate = faster payback	All-in rate including demand and power factor charges
Output profile	Variable output = higher savings	Percentage of time at full load vs reduced load

A line running 6,000 hours per year at variable output with an aging DC motor will have a much shorter payback than a line running 3,000 hours per year at constant full load with a modern AC motor. The 18–30 month range is a reasonable starting point, but a line-specific calculation using actual operating data is essential before committing capital.



Pre-Retrofit Checklist: What to Confirm Before You Buy



Before selecting a VFD or quoting a retrofit project, confirm the following:

Motor and drive assessment:

• Current motor type (DC, AC fixed-speed, AC with existing VFD)
• Motor nameplate data: rated power, voltage, full-load amps, power factor
• Motor age and last winding insulation test result
• Existing drive type and control method (if any)
• Gearbox ratio and speed range required for your product mix

Operating data:

• Actual annual running hours (from production logs, not estimates)
• Typical output percentage (full load vs reduced load percentage of time)
• Maximum and minimum screw speed required
• Torque requirements at low speed (critical for VFD sizing)

Electrical infrastructure:

• Supply voltage and available fault current
• Cable length between VFD and motor (long cables require output reactors)
• Existing power factor and whether the utility charges penalties
• Harmonic distortion levels on the bus (VFDs add harmonics)

Mechanical compatibility:

• Shaft alignment and coupling type between motor and gearbox
• Available mounting space for the VFD panel
• Cooling requirements for the VFD (air-cooled vs liquid-cooled)
• Whether the existing motor can handle VFD operation (insulation class, bearing currents)



Common VFD Retrofit Mistakes on Blown Film Lines



Some retrofit problems recur across installations. Knowing them in advance can prevent costly rework:

1. Incorrect VFD sizing. An extruder is a constant-torque load. The VFD must be sized for the motor's full-load current, not its horsepower rating. Under-sizing leads to nuisance tripping; over-sizing wastes money and can reduce efficiency at low loads.

2. Ignoring motor insulation requirements. Standard AC motors may not have insulation rated for the fast voltage spikes that VFDs produce (dV/dt stress). Motors with inverter-rated insulation or an output reactor between the VFD and motor are recommended for retrofit applications.

3. Skipping the harmonic assessment. VFDs inject harmonic currents into the facility's electrical system. Without proper filtering or a line reactor, harmonics can cause overheating in transformers, nuisance tripping of other equipment, and interference with sensitive electronics.

4. Not verifying low-speed cooling. Standard AC motors rely on shaft-mounted fans for cooling. At low speeds, the fan turns slowly and cooling capacity drops. If the extruder will operate at reduced speed for extended periods, a separately powered cooling fan or an inverter-duty motor is required. Insufficient low-speed cooling is a common cause of VFD-driven extruder motor overheating.

5. Overlooking the winder and haul-off. The extruder VFD controls the primary motor, but the haul-off and winder speeds must be coordinated with the extruder output. If those drives are not upgraded or synchronized, the line may still run inefficiently even with a new extruder VFD.

When a VFD Retrofit Is Not the Right Answer

A VFD retrofit is not always the best use of capital. Consider alternatives if:

• The extruder motor is already an IE3 or IE4 efficiency class motor with a modern VFD.

• The line operates primarily at full load with constant output — the savings from variable speed control will be minimal.

• The motor is near the end of its service life and will need replacement soon anyway. In that case, replacing the entire motor and drive package at once may be more cost-effective than retrofitting a VFD onto a motor that will fail in a year.

• The facility's electrical infrastructure cannot support additional harmonic loads without significant upgrade costs.

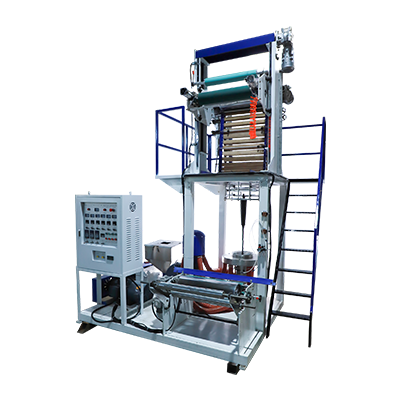

For operations evaluating a broader line upgrade alongside a VFD retrofit, reviewing the available blown film machine configurations and their standard drive specifications can help clarify what a new line includes versus what a retrofit would add.



FAQ



How much can a VFD retrofit reduce energy consumption on a blown film line?

Extruder motor savings typically range from 5–10% at steady full-load operation to 20–30% during variable output, ramp-up, and grade changes. Overall line energy reduction is smaller — approximately 5–8% — because the extruder motor accounts for roughly 30% of total line energy. DC-to-AC conversions often show higher savings than VFD additions to already-efficient AC motors.

What is the typical payback period for a VFD retrofit on a blown film extruder?

Published figures range from 18 to 30 months, depending on electricity tariffs and line utilization. Lines running more than 6,000 hours per year with variable output and older DC drives tend to fall at the shorter end. A line-specific calculation using actual operating hours, motor efficiency data, and local electricity rates is necessary for an accurate projection.

Can I install a VFD on my existing AC motor, or do I need a new motor?

It depends on the motor's insulation class, age, and cooling design. Motors manufactured after approximately 2000 often have insulation suitable for VFD operation. Older motors may require an output reactor or, in some cases, replacement with an inverter-duty motor. The motor's bearing system should also be evaluated for potential shaft currents.

How does a VFD improve power factor on a blown film line?

A VFD with a diode rectifier front-end typically operates at a displacement power factor close to unity, compared to 0.70–0.80 for DC drives and fixed-speed AC motors. This reduces or eliminates utility power factor penalty charges and can lower peak demand charges. The improvement is visible on the electricity bill as a reduction in reactive power charges, not kWh consumption.

What should I check before selecting a VFD for my extruder?

Confirm the motor's full-load current rating, the gearbox ratio and required speed range, the torque requirement at low speed, the cable length between the VFD and motor, and the harmonic distortion levels on the facility's electrical bus. Extruders are constant-torque loads, so the VFD must be sized for full-load current, not just horsepower.

Does a VFD retrofit require changes to the line's PLC or control system?

In most cases, yes. The VFD needs to communicate with the line's PLC for speed reference, start/stop signals, and fault monitoring. If the existing PLC supports Modbus, Profibus, or Ethernet/IP, integration is straightforward. Older PLCs without communication ports may require a signal converter or a PLC upgrade. Coordinating the extruder VFD with the haul-off and winder drives is also necessary for stable line operation.



Conclusion



The real savings from a VFD retrofit on a blown film line come from three specific sources: eliminating throttling losses, replacing inefficient DC drives with modern AC drives, and improving power factor to reduce utility penalties. The most important pre-retrofit step is not selecting a VFD brand or model — it is understanding your actual operating profile: how many hours the line runs, at what output levels, and what type of motor and drive are currently installed.

Avoid the temptation to apply a generic “15–20% savings” figure to your line without verification. A line-specific energy audit that measures actual motor power draw at different operating points will tell you more than any vendor specification sheet.

If you are evaluating a VFD retrofit alongside other line improvements, or want to compare the cost of retrofitting versus upgrading to a line with modern drive systems as standard equipment, reviewing the available configurations can provide a useful baseline for that comparison.
