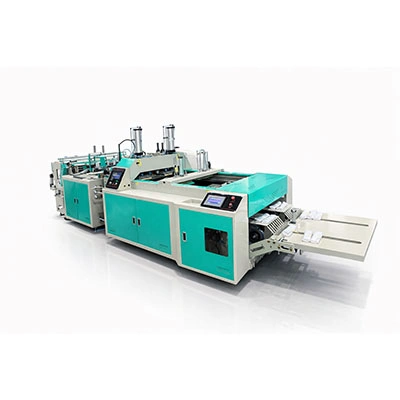

The 450X2 double layers carry bag making machine achieves high-speed production of up to 300 bags per minute per lane with three servo motors, supporting both LDPE and HDPE materials for efficient and sustainable packaging solutions.
| Bag Thickness(mm): | 0.005~0.05 |
| Bag Making Width(mm): | 200-400/200-450 |
| Bag Making Length(mm): | 300-720/300-800 |
| Bag Thickness | 0.005-0.05mm |
| Bag Making Width | 200-400mm/200-450mm |
| Bag Making Length | 300-720mm/300-800mm |
| Bag Making Speed | 250*2pcs/min;300*2pcs/min |
| Main Motor Power | 16kw/18kw |
| Model | YB-450X2 | YB-500X2 |
|---|---|---|
| Suitable materials | HDPE /LDPE /LLDPE /Biodegradable material | |
| Bag width | 180-400mm X2 | 200-450mm X2 |
| Bag length | 300-720mm | 320-800mm |
| Bag thickness | 0.005-0.05mm | |
| Speed | 300pcs/minX2 | 250pcs/min X2 |
| Dimension/Weight | 7000X1900X1900/2t | 7000x1900x1900/2.2T |

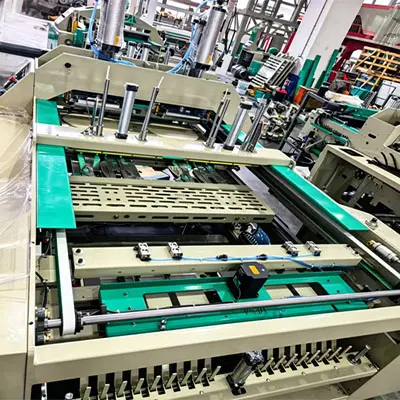

The main part of the bag-making machine uses three sets of servo motors. It can be applied to LDPE, HDPE, PBAT, and biodegradable materials.
The 450X2 double layer carry bag machine automates the entire production process from film unwinding to counting and stacking, enabling high-speed dual-line manufacturing of vest bags with precision registration and heat sealing.
The side seal bag making machine is a fully automatic machine with a folding device. The equipment is widely used in the processing of various printed or non-printed plastic sheets such as PE, OPP, BOPP, heat shrinkable films, etc.
