High-speed mono-layer PE film blowing machine for HDPE/LDPE/LLDPE. 100-220kg/h output, rotary die head, touch screen. Perfect for T-shirt bags & packaging films.

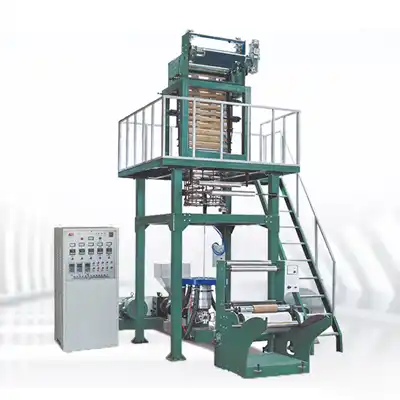

This high-speed single-layer PE film blowing machine is designed for HDPE, LDPE, and LLDPE film production.
With a film width of 1.3–1.4 meters, it is suitable for medium and wide plastic film applications.
It is widely used for shopping bags, garbage bags, T-shirt bags, food and garment packaging films.
The optimized extrusion system ensures stable bubble formation, uniform thickness, and reliable output.
Equipped with touch screen control, automatic winder, and rotary die head, the machine offers easy operation, stable running, and long service life.
Key Selling Points:
1. High-speed PE film blowing machine
2. Film width 1.3–1.4 meters
3. Suitable for HDPE / LDPE / LLDPE
4. Stable bubble and uniform film thickness
5. Touch screen control system
6. Automatic winder + rotary die head
7. Durable and reliable for continuous production
| Main motor | Chinese Brand And Siemens |
| Suitable materials | HDPE, LDPE, LLDPE |
| Screw L/D | 32:1 / 30:1 |
| Inverter | Delta Chinese Brand |
| Temperature-controlled meter | Omron |
| Air ring | Double vent air ring |
| Parameter | MF-C75 | MF-C90 | MF-C105 | MF-C120 |
|---|---|---|---|---|
| Diameter of screw | 75mm | 90mm | 105mm | 120mm |
| screw L/D length | 30:01:00 | 30:01:00 | 30:01:00 | 30:01:00 |
| Screw speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Power of main motor | 30-37Kw | 37-45Kw | 54-70Kw | 70-90Kw |
| Main output | 100kg/h | 150kg/h | 190kg/h | 220kg/h |
| Max folding width of film | 1500mm | 2000mm | 2200mm | 2500mm |
| Single-sided thickness of film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Total power | 46Kw | 60Kw | 78Kw | 95Kw |
| Weight of machine | 4T | 8T | 10T | 12T |
| Overall dimensions (mm) | 5200×2800×6000 | 6200×3400×8000 | 6200×4000×9000 | 6800×4500×10000 |
