YongBang Machinery
Film Blowing Machine Manufacturer
Widely used in the production of various types of highly transparent packaging films, creating con.
siderable economic benefits for you.
| Film Thickness(mm): | 0.02~0.12 |
| Max. Output(kg/h): | 200 |
| Film Layer: | 3 |

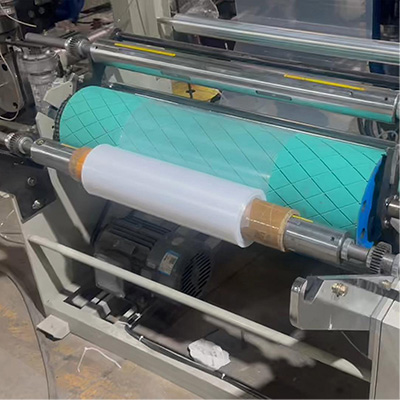

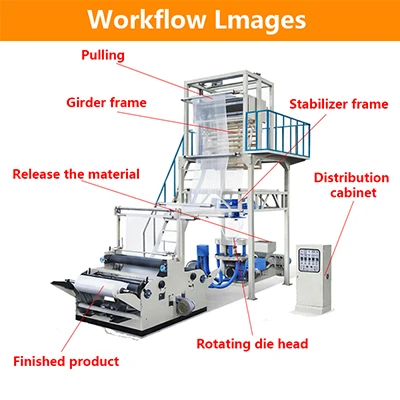

The blown film machine adopts advanced technologies and equipments such as extruder with forced feeding function, precision ceramic heater, precision double-vent wind ring, horizontal rotary traction system, IBC internal cooling system, fully automatic double-cutting and double-collecting surface friction winder, computerized centralized control system and so on.
| Main motor | Siemens (Germany), Brook (UK), GE (USA) |
| Suitable materials | HDPE, LDPE, LLDPE |
| Screw L/D | 32:1 / 30:1 |
| Inverter | Schneider (France), ABB (Switzerland) |
| Temperature-controlled meter | Omron |
| Air ring | Double vent air ring |
| Model | RF-AQ(850) | RF-AQ(1050) | RF-AQ(1350) | RF-AQ(1550) |
|---|---|---|---|---|
| Suitable Material | HDPE, LDPE/LLDPE, EVA | |||
| Max Film Width(mm) | 700 | 900 | 1100 | 1300 |
| Roller width | 800 | 1000 | 1200 | 1400 |
| Film Thickness(mm) | 0.01-0.1 | 0.01-0.1 | 0.01-0.1 | 0.01-0.1 |
| Max. Extrusion Output | 45kg/hr | 55kg/hr | 60kg/hr | 75kg/hr |
| Machine outside(mm) | 4×1.5×3.8 | 4×2.5×3.8 | 4×2.5×3.8 | 4×2.5×3.8 |
| Screw Diameter(mm) | Ø65 | Ø70 | Ø80 | Ø90 |
| Screw L / D Ratio | 28:1 | 28:1 | 28:1 | 28:1 |
| GearBox | 133 | 146 | 173 | 200 |
| Driving Motor (kw) | 15 | 18.5 | 22 | 30 |
| Cooling Blower (kw) | 2.2 | 3 | 4.5 | 5.5 |
| Winding Speed(M/min) | 10-100 | 10-100 | 10-100 | 10-100 |
YB series ABA three-layer film blowing machine utilizes dual extruders to produce symmetrical A/B/A structure films with virgin surface layers and recycled core material, delivering high performance at optimized cost.
The main part of the bag-making machine uses three sets of servo motors. It can be applied to LDPE, HDPE, PBAT, and biodegradable materials.
The YB series mini blown film machine streamlines the film manufacturing process for small-scale production, R&D, and educational purposes through its compact design and intelligent controls.
