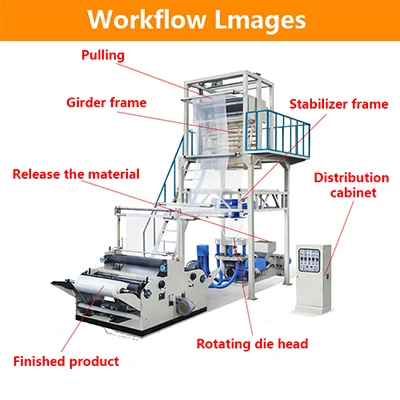

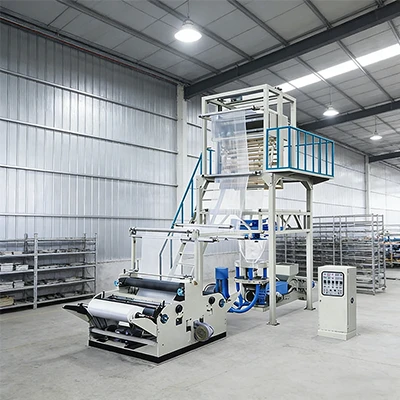

YB series high-speed blown film machine delivers maximum output and cost efficiency for large-scale plastic film production, utilizing optimized design and advanced cooling technology to exceed conventional production speeds.
| Film Thickness(mm): | 0.01~0.08 |
| Max. Output(kg/h): | 50/60/70 |
| Film Layer: | 1 |
The high-speed blown film machine is a high-end core equipment in the modern plastic packaging industry, specifically designed to meet the urgent market demand for large quantities of high-quality plastic films. Through optimized mechanical structures, advanced control systems, and innovative cooling technologies, it achieves production speed and efficiency far beyond conventional blown film machines, making it an ideal choice for large-scale manufacturing enterprises to enhance competitiveness and reduce overall costs.
1. Excellent High-Efficiency Production Capacity: Utilizing optimally designed screws and dies, combined with a high-efficiency cooling system, it achieves extrusion and traction speeds far exceeding conventional models, significantly increasing output per unit of time.
2. High Automation and Stability: Integrated PLC control system with a Human-Machine Interface (HMI) enables one-touch parameter settings and fully automated process control. Equipped with self-diagnostic functions, it operates smoothly, effectively reduces manual intervention, and ensures long-term continuous production.
3. Wide Raw Material Compatibility: Capable of processing various polyethylene materials such as LDPE, LLDPE, HDPE, and mLLDPE, allowing easy switching to meet diverse customer requirements for film performance.
| Main motor | Chinese Brand And Siemens |
| Suitable materials | HDPE, LDPE, LLDPE |
| Screw L/D | 32:1 / 30:1 |
| Inverter | Delta Chinese Brand |
| Temperature-controlled meter | Omron |
| Air ring | Double vent air ring |
| Model | YB-700 | YB-900 | YB-1200 |
|---|---|---|---|
| Suitable materials | HDPE LDPE LLDPE BIODEGRADABLE EVA | ||
| Max film width | 550mm | 750mm | 1000mm |
| Roller width | 700mm | 900mm | 1200mm |
| Film Thickness(mm) | 0.01-0.1 | 0.01-0.1 | 0.01-0.1 |
| Max.Extrusion Output | 50kg | 60kg | 70kg |
| Machine outside( m) | 5X2.2X4.35 | 5X2.4X4.5 | 5.5X2.8X5 |
| Screw Diameter(mm） | 50 | 55 | 60 |
| Screw L/D | 30:1 | 30:1 | 30:1 |
