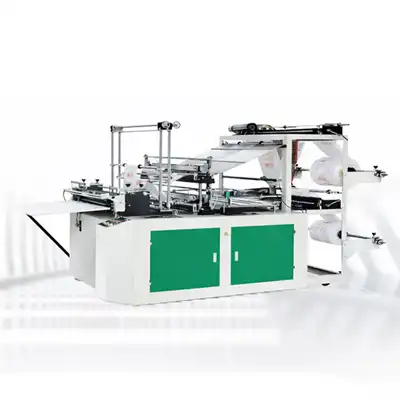

Double-line Cold Cutting Bag Making Machine

Double-line Cold Cutting Bag Making Machine

Bag Thickness(mm):	0.005~0.05
Bag Making Width(mm):	580~980
Bag Making Length(mm):	700~1600

Get a Quote PDF Datasheet

Applications Advantages Parameters Details

Product Applications

Garbage Bags

Food Packaging Bag

Dust Bag

Bag On Roll

Shopping Bag

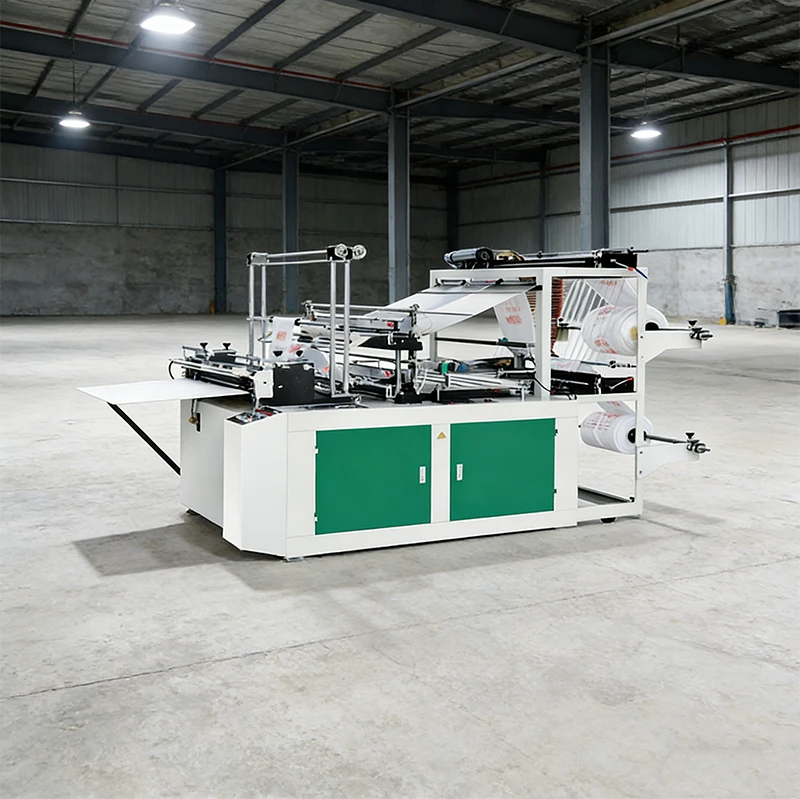

Product Overview

The Double-Layer Heat Seal & Cold Cut Bag Making Machine is designed for high-efficiency plastic bag production. It adopts a dual-layer feeding system combined with precise heat sealing and cold cutting technology, enabling simultaneous sealing and cutting of two layers of film. This advanced design significantly improves productivity while ensuring strong seals, clean cuts, and consistent bag quality. It is an ideal solution for manufacturers seeking stable performance and large-scale production of PE bags.

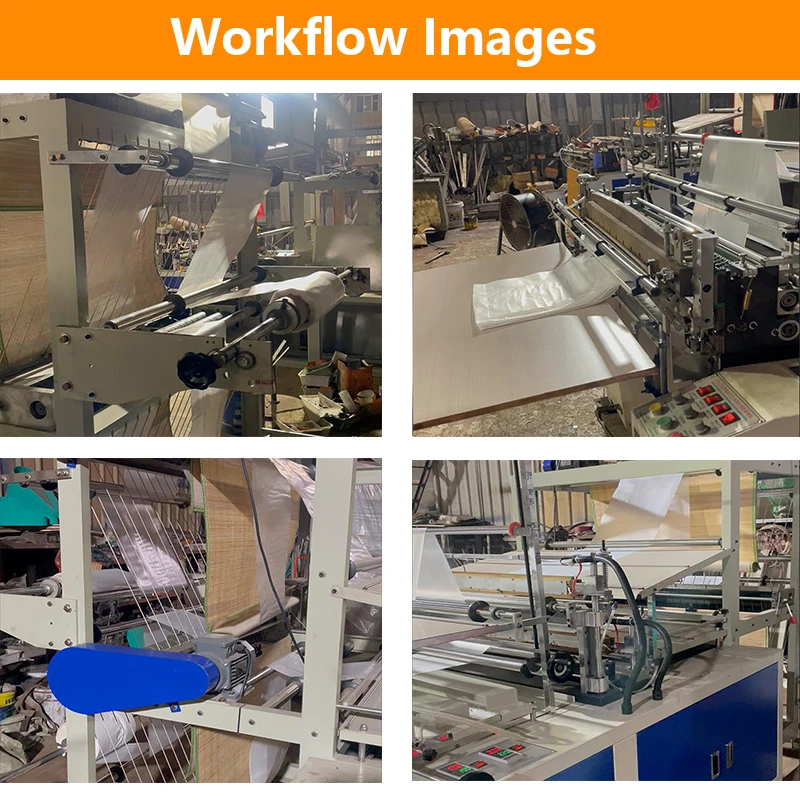

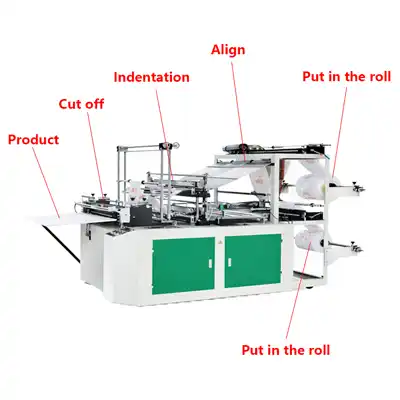

Film Unwinding
Dual-layer unwinding system supports stable feeding of two film rolls, ensuring smooth and continuous material supply.

Film Feeding
Precision-driven rollers transport the film steadily, maintaining constant tension for consistent bag making.

Automatic Alignment
Accurate alignment control keeps both film layers perfectly positioned for uniform sealing and cutting.

Heat Sealing & Creasing
Advanced heat sealing and creasing system forms strong, clean seals with well-defined bag edges.

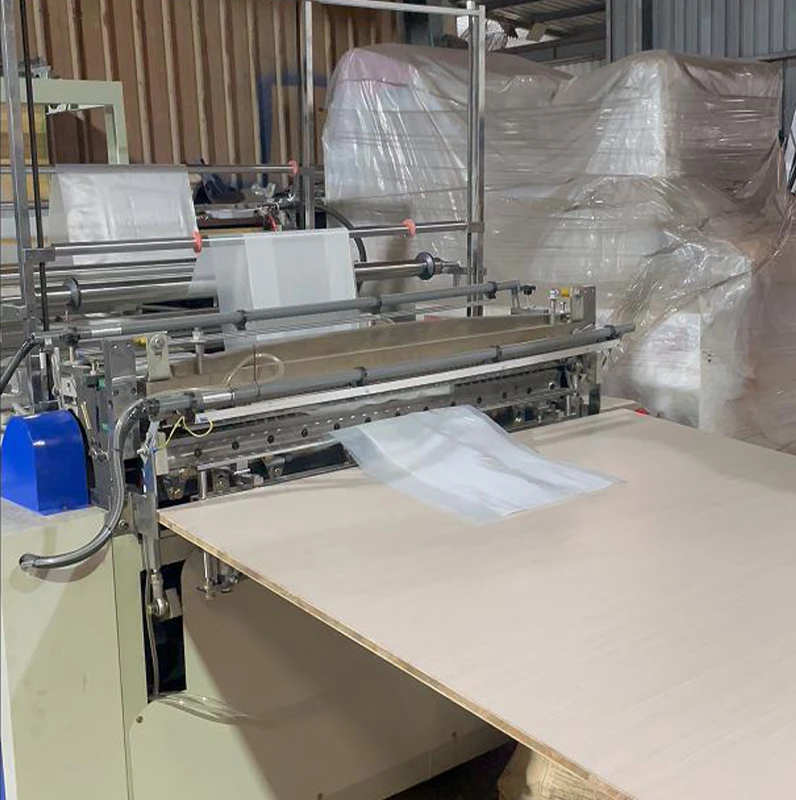

Finished Bags Output
Cold cutting delivers neat, flat finished bags with high consistency, ready for stacking or packing.

Key Features:

Double-Layer Design – Produces two bags simultaneously, doubling production efficiency.

Precision Heat Sealing – Strong, smooth seals ensure reliable bag quality.

Clean Cold Cutting – Flat, neat edges with no stretching or burn marks.

Stable PLC Control – Easy operation and reliable performance for continuous production.

Product Configuration

Bag Thickness	0.005-0.05mm
Bag Making Width	580~980
Bag Making Length	700~1600
Bag Making Speed	1001pcs/min~4004pcs/min
Main Motor Power	1.1kw/3kw

Product Parameters

Parameter	600	700	800	900	1000
Bag Width	580	680	780	880	980
Bag Length	700	1200	1200	1400	1600
Speed	240-400	240-400	60-100	50-100	40-100
Strips	4	4	2	1	1
Power	1.1	1.5	1.5	2.2	3
Weight	700	850	850	1000	1100
Dimensions	3200×1200×1700	3500×1300×1700	3500×1300×1800	3700×1600×2000	3800×1800×2100

Our Global Partners

Turkey

Turkey Plastic Factory Expands with New Film Line

Peru

Peru Fishing Company Enhances Packaging with Film Machine

Russia

Russia Manufacturer Achieves Local Production with Film Equipment

Mexico

Mexico Supplier Upgrades Film Line to Boost Output

FAQ

Your concerns about quality, customization, service and other issues related to blown film machines are answered here, and if you have special customization needs, you can contact the experts online!

Are you a factory or a trading company?

We are a factory with over 15 years of experience specializing in the manufacturing of plastic film blowing machines.

How can I make sure the film blowing machine fits my needs?

Our professional engineering team will recommend suitable configurations based on your material (HDPE / LDPE / LLDPE), film application, and production requirements. We also provide machine testing before shipment for your reference.

How do you guarantee the machine quality after I place an order?

During production, we keep you informed of the manufacturing progress. After the machine is completed, we will provide running and testing videos to confirm performance. You are also welcome to arrange a third-party inspection or visit our factory to check the machine before delivery.

What if the film blowing machine has a problem?

All machines are strictly tested and well-adjusted before shipment. If any issues occur, we provide online technical support via video call. We also supply free spare parts for easy replacement when necessary.

I’m worried about not receiving the machine after payment. How can you ensure safety?

We are a verified factory with complete business licenses and export certificates. You can also place your order through Alibaba Trade Assurance, which ensures payment security and on-time delivery.

What’s the transaction process?

First, we provide a detailed quotation based on your film blowing requirements. After confirmation, a Proforma Invoice will be issued. You then place the order and pay the deposit via Alibaba. Once the deposit is received, we start production. When the machine is ready, we will send testing videos for your inspection. After the balance payment is completed, we arrange export packing and shipment.
